Wireless Video Transmission System 2.4/5.8GHz, 1080P Full HD Wireless HDMI Transmitter and Receiver, 820FT Wireless HDMI Extender Kit with HDMI Loop-Out and Support IR（RX Only）

Price: $109.99
(as of Jun 22, 2025 16:36:47 UTC – Details)

Product Description

𝐁𝐎𝐕𝐁𝐎𝐗 WIRELESS HDMI VIDEO TRANSMITTER AND RECEIVER

BovBox 900S Wireless Video Transmission System

Wireless HDMI Transmitter and Receiver Transmission System uses the latest image coding, decoding technology and 2.4/5.8G wireless transmission technology to achieve less than 0.06s latency video transmission, the transmission distance is 820ft/250m, in the line-of sight environment, and the maximum resolution is 1080P 60Hz, enabling full HD video transmission, Supports one transmitter to multiple receivers. mulitple power options, Ideal for filmmaking, sports events, wedding live broadcast, church live streaming, etc.

Why Choose BovBox Wireless HDMI Video Extender Kit

1) 2.4/5.8G wireless transmission with dual antenna design improves the quality and reliability of wireless HDMI signals.

2) Support IR pass-back with 20-60KHzfrequency,with local loop-out function.

3) 1080P high-definition picture quality, support 1080P@60Hz high-definition resolution, support 60 times per second picture update frequency, clear and natural playback, smooth and clear picture”.

4) Easy installation, plug-and-play, no additional settings.Avoid the cost and time of installing complex and expensive wiring infrastructure.

UP TO 4 PAIRS and 1 TX TO 4RX

1) Connect up to four pairs simultaneously without interference.

2) This wireless hdmi extender can support 1 TX to 4RXs (Max).

3) With the increase of RX, the wireless transmission distance will be shortened.(line of sight distance , unobstructed)

1TX to 1RX transmission distance: 820FT /250M; 1TX to 2 RX transmission distance: 755FT/230M 1TX to 3RX transmission distance: 689FT/210M; 1TX to 4 RX transmission distance: 623FT/190M

PRODUCT FEATURES

Multiple Power Supply Options

NP-F series battery (970/750/550) and Type-C USB (5V/2A) portable rechargeable power supply, perfect for your outdoor shooting and film production. Optional DC power 5V2A adapter is available indoors.

NOTE: Batteries are not included in the package.

Plug-and-play, HDMI local loop-out

Quick and easy setup as no complicated cables or wires are required and no software has to be installed. HDMI Loop out on the transmitter acts as a splitter and provides an additional output for use of a local display.

Battery Low Indicator & Switch Button

There are four power indicators on the back of the Transmitter and Receiver, when the power is reduced, the lights will go out from left to right, the fourth light flashes when the low battery alarm.

NOTE: On the right is the battery power switch button. (battery powered only)

Vertical & Horizontal Mount

Transmitter and receiver allows horizontal and vertical mounting, 1/4 threaded holes on front and bottom, Allows mounting on camcorders, cameras, tripods.

Locked To a Fixed Maximum

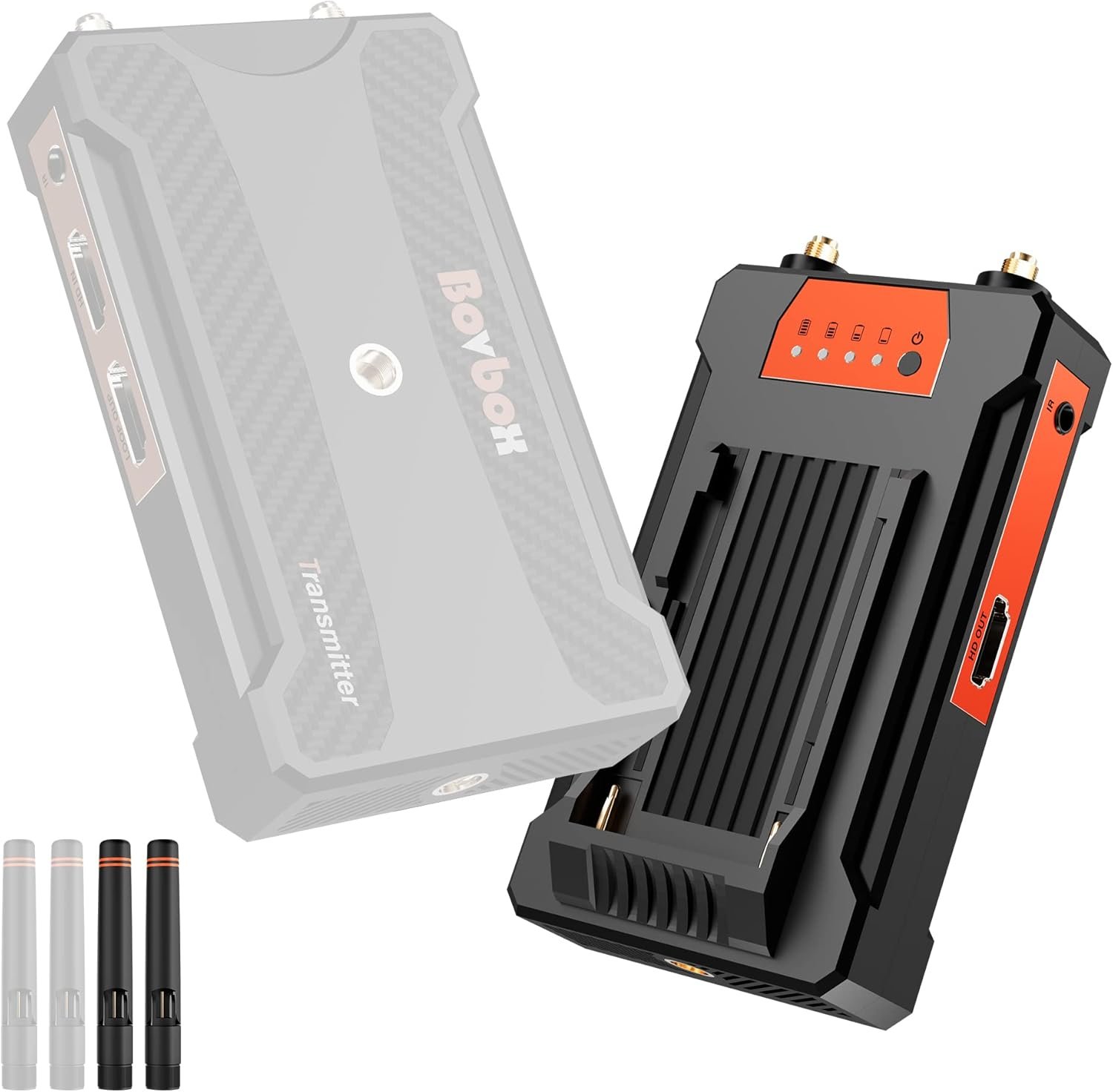

The back plate is designed to securely hold the NP-F series batteries in place. Stable NP-F battery power supply. Side battery removal button Easy to remove battery.

Packing List

Transmitter*1, Receiver*1, 5V2A Adaptor*2, Antennas*4, IR TX RX*2, Portable Storage Bag*1, Type-A to Type-C Charging cable*2, User Guide X1

Audio Separation

With the RX, you can receive signals from cameras and see video signals through other HDMI devices（HDMI signal has the audio as well）. Plugged into headphones, we can monitor live sound through the AMS port on the RX.

The AMS interface on the TX is used to collect external audio, and the sound is transmitted through the TX to the RX for play the collected sound.

Installation Steps

First connect the HDMI cable, the signal source connect Sender (transmitter) IN input; local display device connect Sender(transmitter) OUT output.Then connect the receiver to a remote display device (such as a television, a splicing screen and so on).IR remote control function: pay attention to the infrared head of the sender should face and close to the signal source.

Supports vivid, high-definition videos up to 1080p @60Hz. Compatible HDMI1.3,HDCP1.4 (High-bandwidth Digital Content Protection) and Loop out 1080P full HD signal to the local monitor.

Resolution supported: 1080p@60Hz /1080p@60Hz/ 1080p@24Hz / 1080p@25Hz / 1080p@30Hz / 720p@50Hz / 720p@60Hz / 576i@50Hz / 480p@60Hz

Add to Cart

Add to Cart

Customer Reviews

4.2 out of 5 stars 80

3.7 out of 5 stars 21

4.3 out of 5 stars 364

3.4 out of 5 stars 27

2.6 out of 5 stars 7

2.6 out of 5 stars 7

Price

$169.99$169.99
— no data
$143.99$143.99
— no data

— no data

— no data

Transmission Distance
820ft 990ft 820ft 656ft 330ft 330ft

Interface
HDMI IN & Out & Loopout HDMI IN & Out & Loopout HDMI IN & Out & Loopout HDMI IN & HDMI Out HDMI IN & HDMI Out TYPE-C IN & HDMI Out

Low Latency
0.06S 0.06S 0.06S 0.06S 0.06S 0.06S

Frequency
2.4G/5.8G 2.4G/5.8G 2.4G/5.8G 2.4G/5.8G 5.8G 5.8G

Maximum Resolution
Full HD 1080P@60Hz Output Full HD 1080P@60Hz Output Full HD 1080P@60Hz Output Full HD 1080P@60Hz Output Full HD 1080P@60Hz Output Full HD 1080P@60Hz Output

Transmission Support
Video & Audio Transmission Video & Audio Transmission Video & Audio Transmission Video & Audio Transmission Video & Audio Transmission Video & Audio Transmission

Instructions
IR Remote Control / Plug and play, no drive or APP needed IR Remote Control / Plug and play, no drive or APP needed IR Remote Control / Plug and play, no drive or APP needed Plug and play, no drive or APP needed Plug and play, no drive or APP needed Plug and play, no drive or APP needed

【up 1TX to 4RX】Wireless HDMI Transmitter and receiver, connect up to 4 different devices, support from 1TX to 4RX. It is worth noting that with the addition of RX devices, the distance of wireless transmission will be reduced. Its paired transmission distance is :1TX to 1RX (820FT ), 1TX to 2RX(770FT), 1TX to 3RX(705FT), 1TX to 4RX(639FT).Note: When adding multiple RXs, they must be paired with TXs.
【Wireless Video Transmission Signal and Low latency】Wireless HDMI video transmitter and receiver uses 5.8GHz frequency high-speed transmission, dual antenna design. Wireless HDMI offers transmission rates of up to 8.5Gbps, while the addition of dual antennas enhances signal transmission and compression resistance, ​Allowing the device to pass through walls, bricks or glass. At the same time, the device has a very low latency of 0.01s, which is ideal for live broadcasting and corporate events.
【Multiple Power Supply Options】Guarantees that you have nonstop power supply for different shooting scenarios; NP-F series battery (NPF970/NPF750/NPF550) and Type-C USB (5V/2A) Portable Charger Power Supply, arePerfect for your outdoor shooting and film production. Indoor optional DC power supply 5V2A adapter. NOTE: NP-F batteries are not included in the package.
【Loop Out & IR Remote Control】Allow source device to recognize remote commands; You can control the HDMI source device at a secondary location with the included IR cables, typically where the HDTV is located for added convenience. Additional HDMI Output on the Transmitter end allows you to add a local Display for Monitoring.
【Wide Range Device Compatibility】 Wireless video transmitter and receiver, Com. patible works with most HDMI-equipped devices, including TV, DSLR camera, Projector, PS4, PS5, hd digital video camera, blu-ray players, set-top boxes, AV receivers, cable/satellite boxes, laptop and computer pc systems. Our products are backed with a 1-year limited warranty. If you have any questions or concerns, click on our name in the buy box and select “Ask a Question.
