WiFi Puck Antenna Dual Band 2.4G 5.8 GHz, 5dBi Omni-Directional Mini Screw Mount RP-SMA Male Antenna 5ft Cable w/SMA Male to RPSMA Female Adapter for WiFi Router Hotspot Wireless Network Card

Price: $12.29
(as of Jun 16, 2025 07:14:19 UTC – Details)

Product Description

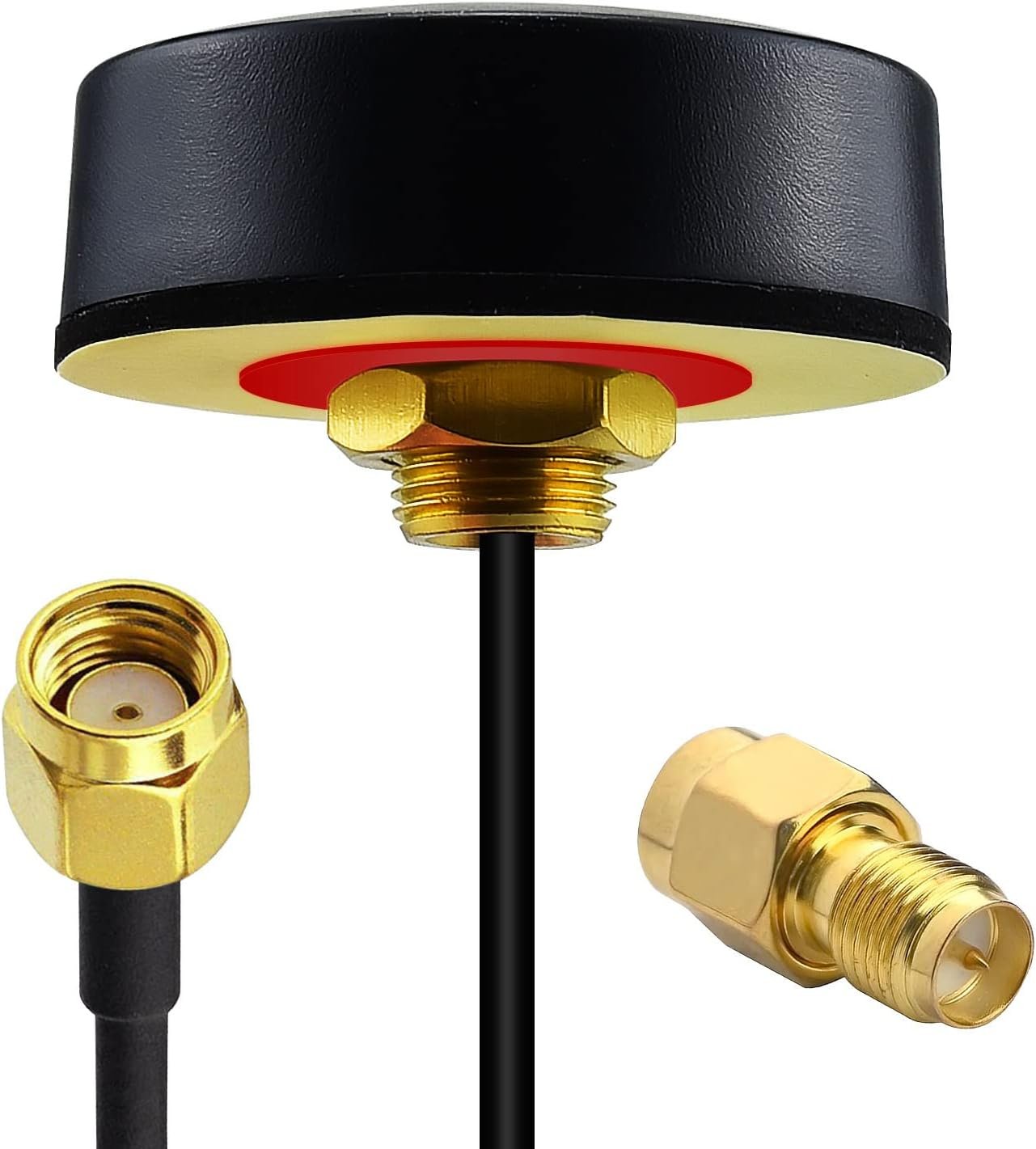

Dual Band Screw Mount Omni Antenna

Perfect for outdoor omnidirectional various intelligent terminals, cabinets, advertising cabinets, and waterproof and anti-theft functions.

Vending Machines Machine Control Panels Surveillance

Electrical Specifications

Frequency Range 2.4~5.8GHz Impedance 50 ohm V.S.W.R ≤3 Gain 5 dBi Radiation Omni Polarization Linear

Mechanical Specifications

Connectors RP-SMA plug (male) – Brass with Nickel plating Housing Material ABS plastic (black) Cable Way out Middle line Cable Length Two lengths are available for RG174 coaxial cable: 5 feet and 9.8 feet Mounting 3M+M10 Nut Working Temperature -40℃～+85℃ Storage Temperature -50℃～+85℃ Humidity 95±3 Waterproof IP66

This wifi antenna omnidirectional antenna provides 2 dBi of gain. Applicable to all 2.4G and 5G 5.8G cellular bands.Mounted through a hole with a locking inner nut.Choose ABS material, performance is more stable. No exposed coaxial cable to prevent vandalismWe have a waterproof pad for the product to prevent water from entering the device during outdoor use and to protect the device from working properly.Includes a 6-foot low-loss coaxial cable that is input through a central mounting post.Designed for open-air equipment such as advertising machines, vending machines, instrument enclosures, equipment sheds or other locations that require inconspicuous thin external antennas.It can also be installed on buses, vans, trucks or other mobile facilities.The integrated RP-SMA male(center hole) connector works with the RP-SMA female found on most Wi-Fi access points and routers.An additional RPSMA Female to SMA Male Adapter is available to expand more applications.

【Dual Band Omni-Directional Antenna】- 2.4Ghz 5Ghz 5.8Ghz screw mount dual-band WiFi antenna, comes with a 4.9-foot/1.5-meter long RP SMA male connector cable and a free RP-SMA female to SMA male adapter. it radiates the signal in all directions, allowing for better coverage in a specific area.
【High Performance & Compact】- This mini puck antenna maintains high performance even when installed on non-metal surfaces. It is also lightweight and when installed on a waterproof rubber gasket, the cable will not be exposed, making it suitable for both public and concealed applications. It is easy to install.
【IP66 Waterproof】- Prevents damage caused by water jetting into the antenna from all directions . No exposed cable when installed,a waterproof pad, Ideal for use outdoors, in vending machines, meter housings, equipment sheds, or other locations requiring a low-profile high performance external antenna.
【Applications】- Outdoor WiFi antenna perfect for Kiosks, Vending Machines, Control Panels, NEMA Enclosures, Ceilings and Covert Installations. It can help extend the range and improve the signal quality.
【Real Test Data】- When tested under no interference conditions, our router antenna can provide a gain of 9.93dBi for 2.4G frequency networks. In practical applications, it will be affected by many other factors, resulting in a gain of around 5dBi.
