Satellite Finder Satellite Signal Meter Digital Satellite Meter Sat Finder DVB-S FTA C&KU Band MPEG-2 Satellite Signal Finder EPG AV 3.5inch LCD Display

Price: $425.59
(as of Jun 18, 2025 14:26:57 UTC – Details)

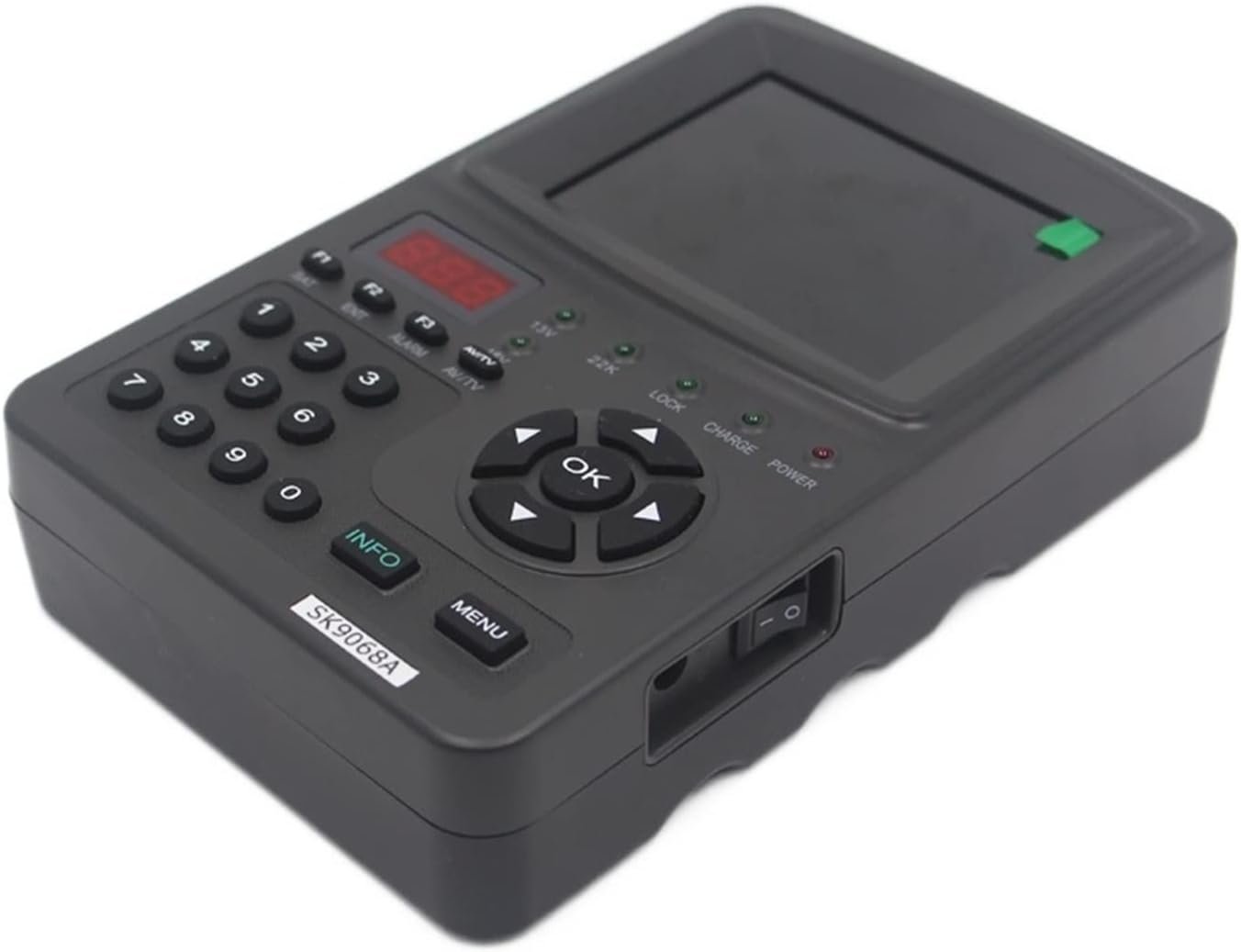

3.5Inch TFT LED Handheld Multifunctional Satellite Finder&Monitor

Accessories:
DC13.5V 1.5A adapter
Bag
Fast line
Car Power
DC lineAV line

Specification:
LCD Display
3.5″TFT LCD
Display size:73*51mm
Dots pixels:320*240(230400Pixes)
Digital Tube Display
LED
Display signal quality / Channel Number
Menu language
English /French / Russian / Arabic/Farsi/Portuguese/Turkey
Satellite signal
video decoding
DVB-S
signal test
DVB-S signal alarm & signal test
LNBTuner Input
connector
F type male puly 75 F
Frequency range
950MHz-2150MHz
Signal level
-65dBm~-25dBm
Symbol rate
13/18V.max400mA
LNB switch control
22KHz
DiSEqC
1.0 1.1 1.2edition
Threshold
4.1dB;
Demodulator
Front end
QPSK(SCPC and MCPC compatible)
Symbol rate
2Mbps-45Mbps
System Resource
processor
32bit processor(200MHz)
SDRAM
16Mbyte
FLASH
4Myte
EEPROM
8Kbyte
Video Decoder
Video
MPEG-2 Main Level
Date Rate
Up to 15Mbps
Resolution
720*576,720*480
Video format
PAL/NTSC/SECAM
Vioce
Voice patterns
Single sound channel
Sampling rates
32.44.1&48KHz
Panel Connectors
Connector
RS232
Power Supply
Lithium Battery
111V2200mAh
Charger
In AC100220V Charge 135V/1.5A
Out DC12V/1.5A
Physical Specification
Size
110*170*41mm
Net Weight
440g (including battery pack)
Function
3.5 inch handheld multifunctional monitor&satellite finder is a product for the installation of satellite TV test toolsSet the satellite TV signal and image shows test radio television, monitoring function.
Using TFT LCD display image,LED backlighting with low power consumption.Built-in large capacity and high-performance lithium batteries for the integration of high-tech electronic products.
Low power consumption LED / high-resolution digital display TFT LCD .built-in 2200mAh Li-lon battery, do not need an external power supply, working time is about 3-4 hours, AV output and input function. with DC12V output(use of camera).
Unique starsearch guidance function and satellite finder management, Built-in protecting circuits for high-frequency tuner, external short circuit alarm.13V18V/22K/signal lock indicator located in machine panel,it can be displayed at the same time.
Due to the use of handheld structure, this machine is small in size and light in weight. Equipped with installation tool backpack, it is more convenient to carry, it is a professional equipment for satellite TV receiving system engineering, control engineering and technicians
