PHAT SATELLITE 1ft Made in USA Plenum RG-11 Coax 3Ghz HD Cable TV Antenna 14AWG 75 Ohm All Brass CONNECTORS CMP UL ETL Anti-Static Commercial FIRE Retardant Cut to Order Assembled in USA INTL

Price: $11.06
(as of Jun 24, 2025 07:09:01 UTC – Details)

CABLE SPECIFICATION

• MADE IN USA
• SOLID CORE 14AWG RG11 CABLE
• 3Ghz 75 Ohm swepted tested
• 60% braided, 100% foil shield
• Commercial Plenum rated application
• UL ETL CMP rated, Anti-static, non-toxic, smokeless, fire retardant PVC JACKET
• Capacitance 52.5 pF/m | 16.0 pF/ft
• Characteristic Impedance 75 ohm
• Characteristic Impedance Tolerance ±3 ohm
• Conductor dc Resistance 11.00 ohms/kft
• Dielectric Strength, conductor to shield 4000 Vdc
• Jacket Spark Test Voltage 5000 Vac
• Nominal Velocity of Propagation (NVP) 86 % Shield dc
• Resistance 3.50 ohms/kft
• Structural Return Loss 15 dB @ 1000–3000 MHz | 20 dB @ 5–1000 MHz
• Structural Return Loss Test Method 100% Swept Tested

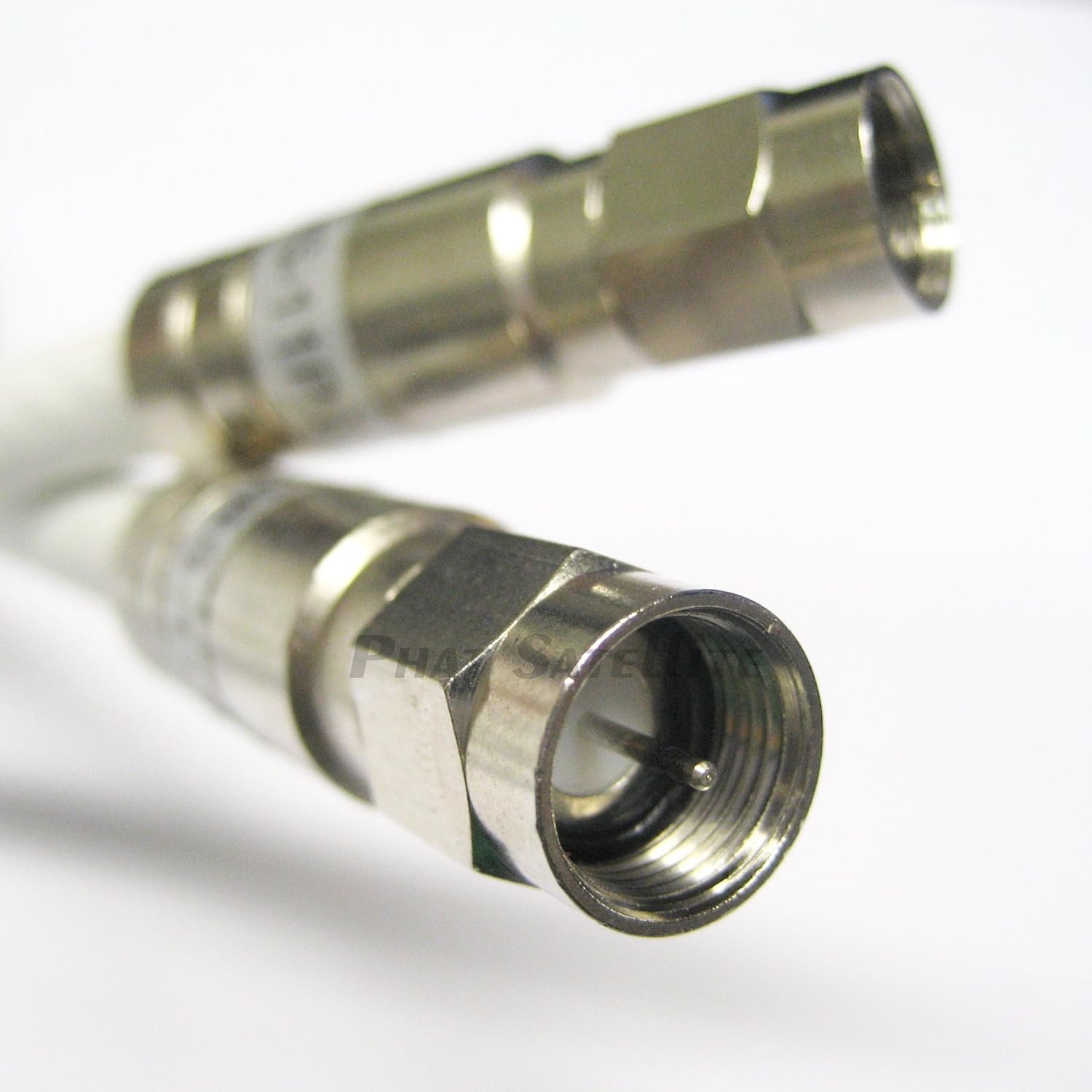

CONNECTORS

• Universal plenum compression connector
• One piece all metal design
• Nickel plated brass construction
• Patented dual 360° compression rings
• Locking mechanism for increased torque retention

USAGE

• Lower signal loss over RG-6
• HD OVER THE AIR ANTENNA
• DirecTV / Dish Network, and Other Satellite usage approve
• Ham radio, short wave antenna usage
• Cable Modem Internet
• HD Digital Cable TV
• Cellular Boost Antenna
• Speed sensor, and other F-connector coaxial required device

ASSEMBLY

• Customized Cut to Order
• Made from Foreign and Domestic parts
• Assembled n USA by PHAT SATELLITE INTL at 8 facilities across the USA

PLEASE SEE ALL AVAILABLE CABLES WITH VARIOUS SPECIFICATIONS by PHAT SATELLITE INTL.
SEARCH ON AMAZON FOR PHAT SATELLITE INTL
Item Weight ‏ : ‎ 1 ounces
Date First Available ‏ : ‎ April 25, 2018
Manufacturer ‏ : ‎ PHAT SATELLITE
ASIN ‏ : ‎ B07CN7WM6J

CABLE SPECIFICATION: MADE IN USA SOLID CORE 14AWG RG11 CABLE 3Ghz 75 Ohm Swept Tested 60% Braided, 100% Foil Shield Commercial Plenum Rated Application UL ETL CMP Rated, Anti-Static, Non-Toxic, Smokeless, Fire Retardant
CONNECTORS: UNIVERSAL PLENUM COMPRESSION CONNECTOR ONE PIECE ALL METAL DESIGN NICKEL PLATED BRASS CONSTRUCTION PATENTED DUAL 360° COMPRESSION RINGS LOCKING MECHANISM FOR INCREASED TORQUE RETENTION
USAGE: – HD OVER THE AIR ANTENNA – DirecTV / Dish Network, and Other Satellite usage approve – Ham radio, short wave antenna usage – Cable Modem Internet – HD Digital Cable TV – Cellular Boost Antenna – Speed sensor, and other F-connector coaxial required device
ASSEMBLY: Customized Cut to Order – Made from Foreign and Domestic parts – Assembled n USA by PHAT SATELLITE INTL at 8 facilities across the USA
PLEASE SEE ALL AVAILABLE CABLES WITH VARIOUS SPECIFICATIONS by PHAT SATELLITE INTL. SEARCH ON AMAZON FOR PHAT SATELLITE INTL
