KPT-716TS DVB-S2 DVB-T2 Finder Meter HD Satellite TV Receiver MPEG-4 Modulator Better Ws-6979 6933

Price: $231.60
(as of Jun 26, 2025 15:04:20 UTC – Details)

Display size:155*89mm
Dots pixels:800*480(1152000Pixes)
Menu language
English; Russian; Thai. Vietnamese; Burmese; Persian. Georgian; French; Arabic
Receiver standard Satellite Signal
DVB-S/S2
DVB-T/T2
AVS/AVS+/MPEG-2
Input&Output ports
connector
DVBS2 LAN in 75
F type male puly 75 F
Frequency range950MHz2150MHz
Demodulation:QPSK, 8PSK,16APSK,32APSK
Signal level: -65dBm~-25dBm
DiSEqC:DISEqC 1.0/1.1/1.2/1.3 compatible
DVB-T2 ANT in (75)
DVB-T and DVB-T2 standard
Frequency range: VHF-H 174-230MHz, UHF 470-860MHz
Demodulation:QPSK, 16QAM, 64QAM,256QAM
Bandwidth:6,7,8MHz
HD input
1.3 interface;
1080p/1080i/720p/480p/480i output supported
CVBS video, L/R audio
TV model: AV output; AV model: AV input
Ø3.5 Head RCA channel
Video format:PAL/NTSC
USB 2.0
Support PVR and software upgrade
Supports external HDD via USB, power wanted if necessary
Power Supply
Lithium Battery
11.1V/2200mAh
Charger
Input AC100-220V Charge 13.5V / 1A
Output DC12V / 1.A
Physical Specification
Size:180*143*50mm
Main specification and features: T2+S2 combo receiver
1-DVB-T/T2, compliant with EN 300 744 DVB-T and EN 302 755 DVB-T2
2-DVB-S/S2, compliant with EN 300 421 DVB-S and EN 302 307 DVB-S2
3-QPSK,8PSK,16APSK and 32 APSK
4-QPSK/8PSK 1-45Msps, 16APSK:1-39Msps and 32APSK 1-32Msps
5-Channel bw 1.7/5/6/7/8MHz
6-T2-Base profile o T2-Lite profile o single and multiple PLPs
7-Low IF (4.57-10MHz)
8-Carrier acquisition range: +/-650kHz at 8MHz BW
9-Video decoder: MPEG-4/H.264 MP and HP MPEG-2MP at ML and MP at HL
10-Audio decoder: MPEG-1/2/4, AAC/HE-AAC/AC3.DD+ (optional)/PCM
11-HDMI Tx 1.3 with HDCP 1.2 at CEC and full HD up to 1080p
12-PAL and NTSC auto switch
13-USB 2.0 for PVR, time shift and media playback
14-Up to 5000 channels
15-Supports subtitle and VBI/OSD Teletext
16-Auto sca
Fully compliant with DVB-S/S2 standard &DVBT2DVBT standard; video, audio display with HDMI output.
Support AV input: analog video and audio input display as DVD and other multimedia player;with DC12V power supply only output to the camera

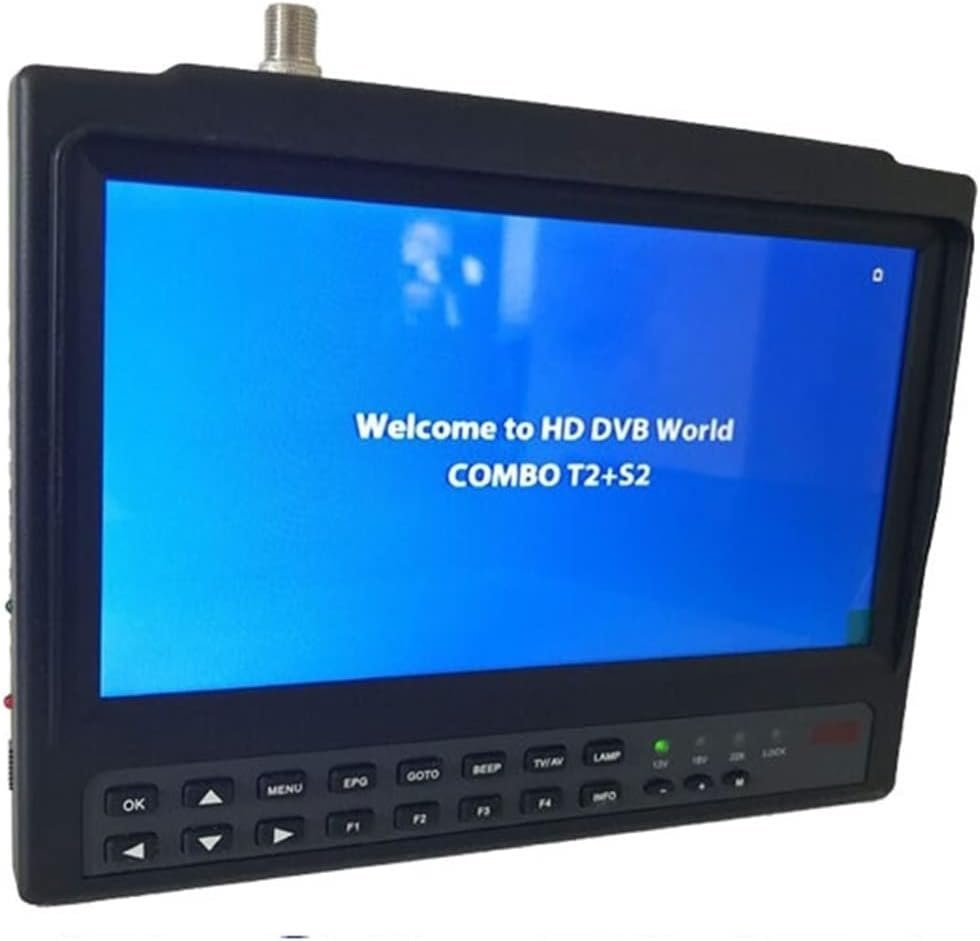

7inch Portable widescreen Satellite finder & DVBT2 Test Monitor
7Inch High definition TFT LCD Screen which Can Play Channels(DVB-S/S2 & DVBT2
T2+S2 Combo Receiver;Live FTA Digital Picture and Sound,
