Eightwood M.2 WiFi Card Antenna 2.4GHz 5GHz Small WiFi Antenna + MHF4 IPEX to RP-SMA Cable 10in + Computer Slot Bracket (6-Pack) for M.2 NGFF Network Card PC Desktop Computer

Price: $12.99
(as of Jun 18, 2025 15:29:41 UTC – Details)

Specification
Frequency:2.4Ghz 5.8GHz
VSWR<1.8
Gain:2.15 dBi
Polarization:Vertical
Impedance:50 Ohm
Direction: Omnidirectional
Antenna Connector: RP-SMA Male ( NO Male Pin)
Pigtail Cable Connector: IPEX MHF4 to RP-SMA female (for N.2 NGFF)
Antenna height: 47mm / 1.85 inch ( rotated by 90 degree); 67mm /2.6 inch (straight)
Maximum input Power:50W

Features
-Perform well with both 2.4Ghz and 5Ghz.
-Suited for 802.11a/b/g/n, 802.11ac, 802.11ax, wireless LANs, Bluetooth.
-Assist to get reliable Wi-Fi& Bluetooth connection.
-Short WiFi antenna,only 1.9 inch in length, is clean and saves space compared with a wired antenna.
Enhance Reception: These 2.4GHz and 5GHz short WiFi antennas will assist network devices get a stronger and more stable connection without signal dropouts
Compatibility: PCI and PCIe network cards, PC desktop computer gaming motherboards, external WiFi USB adapters, wireless network routers, WLAN AP & Hotspot wireless range extenders, wireless WiFi modules, and Bluetooth modules
Application: This kit, along with the included cables, is compatible with M.2 NGFF WiFi cards such as AX201NGW, AX200NGW, AC 9560, AC 9260, AC 8265, AC 8260, AC 7265, and more
Space-saving Design: The antennas are short, measuring only 1.9 inches when rotated by 90 degrees. Without a base, you can simply screw them into the device’s port, eliminating the need for additional floor or PC top space

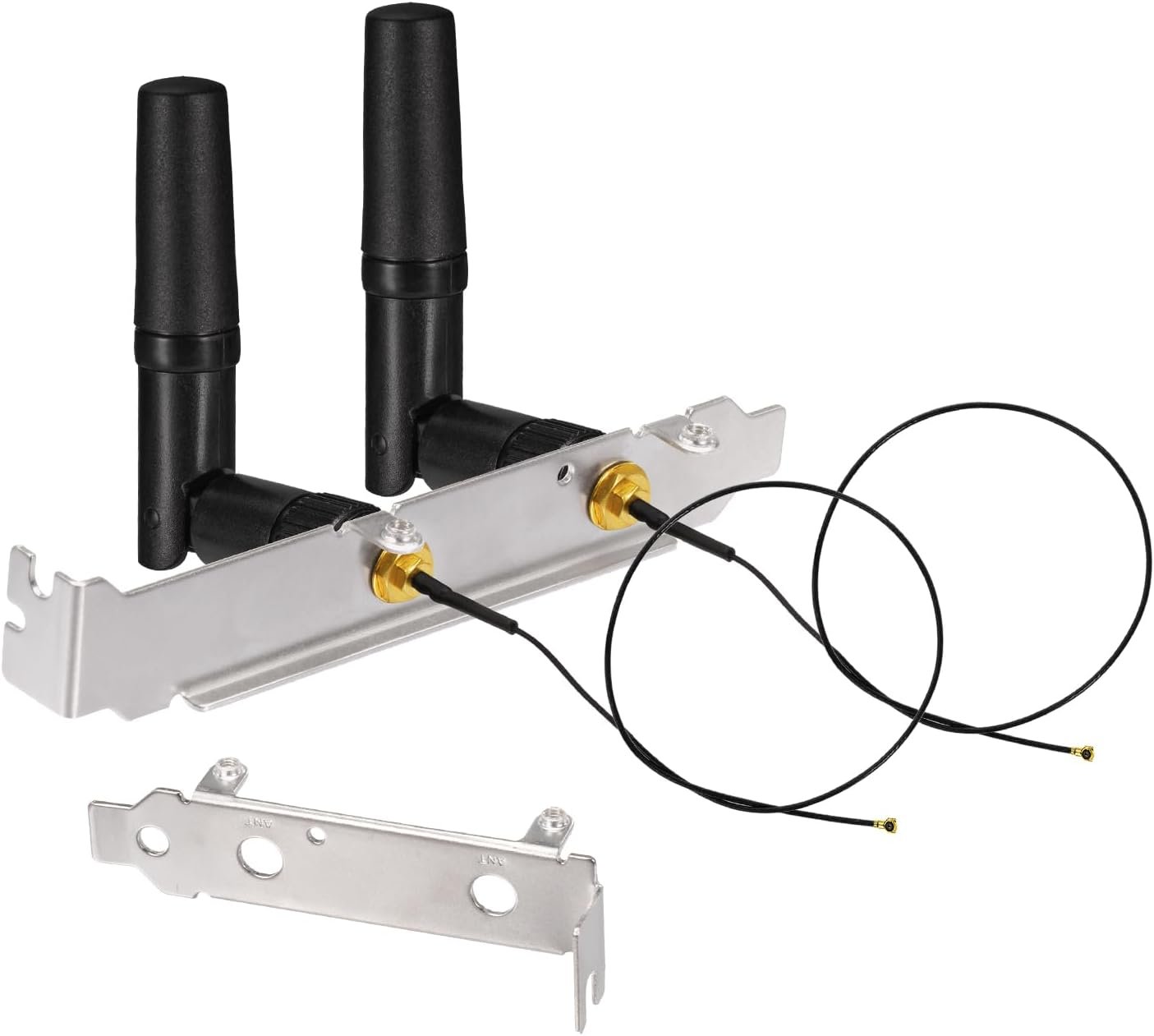

Package Includes: 2pcs 2.4GHz and 5GHz WiFi antennas, 2pcs MHF4 IPEX to RP-SMA cable leads 25cm/10in, and 2pcs computer back slot cover brackets
